Jersey 2.x web service using JAXB + JSON example

In the previous article, we learnt and implemented an example on how to use JAX-RS Restful web service to send & receive XML data as request/response. Here, we will re-use and modify the same example to send & receive JSON data as web service request/response

Jersey is the most popular amongst Restful web service development. Latest Jersey 2.x version has been developed by Oracle/Glassfish team in accordance with JAX-RS 2.0 specification. Earlier Jersey 1.x version was developed and supported by Oracle/Sun team

Latest Jersey release version is 2.12 see here and look documentation and API for details. We will implement Jersey examples in the following articles based on latest 2.x version

JAX-RS specification supports the conversion of Java objects to JSON & vice-versa using Jackson library

Still we need Java objects to send/receive data in JSON format so start designing your XML Schema Definition (XSD), as we can use JAXB Maven plugin to generate Java classes. Later this generated POJO used to exchange JSON data on the fly with the help of Jackson library

Annotation Used

@Path (ws.rs.Path)
@GET (ws.rs.GET)
@POST (ws.rs.POST)
@PUT (ws.rs.PUT)
@DELETE (ws.rs.DELETE)
@PathParam (ws.rs.PathParam)
@Consumes (ws.rs.Consumes)
@Produces (ws.rs.Produces)
MediaType (ws.rs.core.MediaType)

Technology Used

Java 1.7
Eclipse Luna IDE
Jersey-2.12
Apache Maven 3.2.1
Apache Tomcat 8.0.54
Glassfish-4.1

Mavenize or download required jars

Add Jersey-2.12 dependencies to pom.xml

<properties>
    <jersey.version>2.12</jersey.version>
    <jersey.scope>compile</jersey.scope>
    <compileSource>1.7</compileSource>
    <maven.compiler.target>1.7</maven.compiler.target>
    <maven.compiler.source>1.7</maven.compiler.source>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties>

<dependencies>
    <!-- Jersey core Servlet 2.x implementation -->
    <dependency>
        <groupId>org.glassfish.jersey.containers</groupId>
        <artifactId>jersey-container-servlet-core</artifactId>
        <version>${jersey.version}</version>
        <scope>${jersey.scope}</scope>
    </dependency>

    <!-- Jersey JSON Jackson (2.x) entity providers support module -->
    <dependency>
        <groupId>org.glassfish.jersey.media</groupId>
        <artifactId>jersey-media-json-jackson</artifactId>
        <version>${jersey.version}</version>
        <scope>${jersey.scope}</scope>
    </dependency>
</dependencies>

Note: Jackson – high performance parser is included as dependencies for JSON support

Folks who aren’t familiar with Maven concepts or don’t require maven for their project, can download the below jars individually from the central repository or maven repository and include them in the classpath

JAXB – Generating java source files from XSD

Steps to generate java-sources from XML Schema Definition (XSD)

configure JAXB Maven plugin in pom.xml
write well-defined XSD for your service
use maven command “mvn generate-sources” to generate java source files

Configure JAXB Maven plugin

<!-- JAXB plugin to generate-sources from XSD -->
<plugin>
    <groupId>org.codehaus.mojo</groupId>
    <artifactId>jaxb2-maven-plugin</artifactId>
    <version>1.6</version>
    <executions>
        <execution>
            <goals>
                <goal>xjc</goal><!-- xjc/generate -->
            </goals>
            <configuration>
                <outputDirectory>${basedir}/generated/java/source</outputDirectory>
                <schemaDirectory>${basedir}/src/main/resources/com/jersey/series/json/service/entities</schemaDirectory>
                <schemaFiles>*.xsd</schemaFiles>
                <schemaLanguage>XMLSCHEMA</schemaLanguage>
                <extension>true</extension>
                <args>
                    <arg>-XtoString</arg>
                </args>
                <plugins>
                    <plugin>
                        <groupId>org.jvnet.jaxb2_commons</groupId>
                        <artifactId>jaxb2-basics</artifactId>
                        <version>0.6.4</version>
                    </plugin>
                </plugins>
            </configuration>
        </execution>
    </executions>
</plugin>

Book.xsd

Below XSD contains two elements with name “BookType” and “BookListType”

BookType contains four attributes namely bookId, bookName, author, category
BookListType which returns list of BookType

<?xml version="1.0" encoding="UTF-8"?>
<xsd:schema xmlns:xsd="http://www.w3.org/2001/XMLSchema"
    targetNamespace="http://benchresources.in/cdm/Book" xmlns:tns="http://benchresources.in/cdm/Book"
    elementFormDefault="qualified">

    <!-- book object with four attributes -->
    <xsd:element name="BookType">
        <xsd:complexType>
            <xsd:sequence>
                <xsd:element name="bookId" type="xsd:int" />
                <xsd:element name="bookName" type="xsd:string" />
                <xsd:element name="author" type="xsd:string" />
                <xsd:element name="category" type="xsd:string" />
            </xsd:sequence>
        </xsd:complexType>
    </xsd:element>

    <!-- an object to contain lists of books referencing above Book object -->
    <xsd:element name="BookListType">
        <xsd:complexType>
            <xsd:sequence>
                <xsd:element ref="tns:BookType" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:complexType>
    </xsd:element>

</xsd:schema>

Run mvn generate-sources

Look at the generated java source files in the generated folder

BookType.java

package in.benchresources.cdm.book;

import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {
    "bookId",
    "bookName",
    "author",
    "category"
})
@XmlRootElement(name = "BookType")
public class BookType {

    protected int bookId;
    @XmlElement(required = true)
    protected String bookName;
    @XmlElement(required = true)
    protected String author;
    @XmlElement(required = true)
    protected String category;

    public int getBookId() {
        return bookId;
    }
    public void setBookId(int value) {
        this.bookId = value;
    }

    public String getBookName() {
        return bookName;
    }
    public void setBookName(String value) {
        this.bookName = value;
    }

    public String getAuthor() {
        return author;
    }
    public void setAuthor(String value) {
        this.author = value;
    }

    public String getCategory() {
        return category;
    }
    public void setCategory(String value) {
        this.category = value;
    }
}

BookListType.java

package in.benchresources.cdm.book;

import java.util.ArrayList;
import java.util.List;
import javax.xml.bind.annotation.XmlAccessType;
import javax.xml.bind.annotation.XmlAccessorType;
import javax.xml.bind.annotation.XmlElement;
import javax.xml.bind.annotation.XmlRootElement;
import javax.xml.bind.annotation.XmlType;

@XmlAccessorType(XmlAccessType.FIELD)
@XmlType(name = "", propOrder = {
    "bookType"
})
@XmlRootElement(name = "BookListType")
public class BookListType {

    @XmlElement(name = "BookType")
    protected List<BookType> bookType;

    public List<BookType> getBookType() {
        if (bookType == null) {
            bookType = new ArrayList<BookType>();
        }
        return this.bookType;
    }
}

Directory Structure

Before moving on, let us understand the directory/package structure once you create project in Eclipse IDE

Maven has to follow certain directory structure

src/test/java –> test related files, mostly JUnit test cases
src/main/java –> create java source files under this folder
src/main/resources –> all configuration files placed here
src/test/resources –> all test related configuration files placed here
Maven Dependencies or Referenced Libraries –> includes jars in the classpath
WEB-INF under webapp –> stores web.xml & other configuration files related to web application

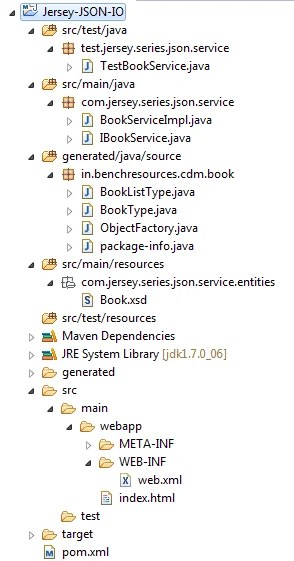

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Web application

For any web application, entry point is web.xml which describes how the incoming http requests are served / processed. Further, it describes about the global-context and local-context param (i.e.; <context-param> & <init-param>) for loading files particular to project requirements & contains respective listener

With this introduction, we will understand how we configured web.xml for Jersey JAX-RS Restful web service

web.xml (the entry point –> under WEB-INF)

This web.xml file describes,

Like any JEE web framework register “org.glassfish.jersey.servlet.ServletContainer” with servlet container
http requests with URL pattern “/rest/*” will be sent to the registered servlet called “jersey-servlet” i.e.; (org.glassfish.jersey.servlet.ServletContainer)
Set <init-param> with <param-name> as “jersey.config.server.provider.packages” and <param-value> describing the qualified package name of the JAX-RS annotated Resource/Provider classes. In this example, “com.jersey.series.json.service”
<welcome-file-list> files under this tag is the start-up page

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app version="3.0" xmlns="http://java.sun.com/xml/ns/javaee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd">

    <display-name>Jersey-JSON-IO</display-name>

    <!-- Jersey Servlet -->
    <servlet>
        <servlet-name>jersey-servlet</servlet-name>
        <servlet-class>org.glassfish.jersey.servlet.ServletContainer</servlet-class>
        <!-- Register resources and providers -->
        <init-param>
            <param-name>jersey.config.server.provider.packages</param-name>
            <param-value>com.jersey.series.json.service</param-value>
        </init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>

    <servlet-mapping>
        <servlet-name>jersey-servlet</servlet-name>
        <url-pattern>/rest/*</url-pattern>
    </servlet-mapping>

    <!-- welcome file -->
    <welcome-file-list>
        <welcome-file>index.html</welcome-file>
    </welcome-file-list>

</web-app>

Let’s see coding in action

URL Pattern

Http url for any common web application is http://<server>:<port>/<root-context>/<from_here_application_specific_path>

In our example, we are going to deploy the war into Tomcat 8.0 server so our server and port are localhost and 8080 respectively. Context root is the project name i.e.; Jersey-JSON-IO. Initial path for this application is http://localhost:8080/Jersey-JSON-IO

We have configured “/rest/*” as url-pattern for the “jersey-servlet” servlet in web.xml and at class-level path configured is “/bookservice” using @Path annotation. Next respective path for each method annotated with @Path (method-level)

Book Service interface

Defines basic CRUD operations for Book Service

NOTE: It’s always a good programming practice to do code-to-interface and have its implementation separately

IBookService.java

package com.jersey.series.json.service;

import in.benchresources.cdm.book.BookListType;
import in.benchresources.cdm.book.BookType;

public interface IBookService {

    // Basic CRUD operations for Book Service

    public String createOrSaveBookInfo(BookType bookType);
    public BookType getBookInfo(int bookId);
    public String updateBookInfo(BookType bookType);
    public String deleteBookInfo(int bookId);
    public BookListType getAllBookInfo();
}

Book Service implementation

Implements above interface

Defines simple CURD operations

@POST – create/inserts a new resource (adds new book information)
@GET – read/selects internal resource representation based on the bookId
@PUT – update/modifies an internal resource representation (modify book)
@DELETE – delete/removes a resource (delete book)
@GET – retrieves all books (get all books information)

Let’s discuss @Produces, @Consumes and MediaType

@Consumes
Defines which MIME type is consumed by this method. For this example, exposed methods are restricted to consume only JSON data and it is annotated with @Consumes(MediaType.APPLICATION_JSON)

@Produces
Defines which MIME type it will produce. For this example, exposed methods are restricted to produce only JSON data and it is annotated with @Produces(MediaType.APPLICATION_JSON)

Most widely used Media Types are

APPLICATION_XML,
APPLICATION_JSON,
TEXT_PLAIN,
TEXT_XML,
APPLICATION_FORM_URLENCODED,
etc

Note: Jersey doesn’t inherit JAX-RS annotations. So we are annotating Resource/Provider classes and then defining qualified package name in web.xml

BookServiceImpl.java

package com.jersey.series.json.service;

import in.benchresources.cdm.book.BookListType;
import in.benchresources.cdm.book.BookType;

import javax.ws.rs.Consumes;
import javax.ws.rs.DELETE;
import javax.ws.rs.GET;
import javax.ws.rs.POST;
import javax.ws.rs.PUT;
import javax.ws.rs.Path;
import javax.ws.rs.PathParam;
import javax.ws.rs.Produces;
import javax.ws.rs.core.MediaType;

@Path("/bookservice")
public class BookServiceImpl implements IBookService {

    // Basic CRUD operations for Book Service

    // http://localhost:8080/Jersey-JSON-IO/rest/bookservice/addbook
    @POST
    @Path("addbook")
    @Consumes(MediaType.APPLICATION_JSON)
    @Produces(MediaType.APPLICATION_FORM_URLENCODED)
    public String createOrSaveBookInfo(BookType bookType) {

        // get book information from formal arguments and inserts into database & return bookId (primary_key)
        return "New Book information saved successfully with Book_ID " + bookType.getBookId();
    }

    // http://localhost:8080/Jersey-JSON-IO/rest/bookservice/getbook/10001
    @GET
    @Path("getbook/{id}")
    @Consumes(MediaType.APPLICATION_FORM_URLENCODED)
    @Produces(MediaType.APPLICATION_JSON)
    public BookType getBookInfo(@PathParam("id") int bookId) {

        // retrieve book information based on the id supplied in the formal argument
        BookType bookType = new BookType();
        bookType.setBookId(bookId);
        bookType.setBookName("Molecular Biology of The Gene");
        bookType.setAuthor("James D Watson");
        bookType.setCategory("Microbiology");
        return bookType;
    }

    // http://localhost:8080/Jersey-JSON-IO/rest/bookservice/updatebook
    @PUT
    @Path("updatebook")
    @Consumes(MediaType.APPLICATION_JSON)
    @Produces(MediaType.APPLICATION_FORM_URLENCODED)
    public String updateBookInfo(BookType bookType) {

        // update book info & return SUCCESS message
        return "Book information updated successfully";
    }

    // http://localhost:8080/Jersey-JSON-IO/rest/bookservice/deletebook/10003
    @DELETE
    @Path("deletebook/{id}")
    @Consumes(MediaType.APPLICATION_FORM_URLENCODED)
    @Produces(MediaType.APPLICATION_FORM_URLENCODED)
    public String deleteBookInfo(@PathParam("id") int bookId) {

        // delete book info & return SUCCESS message
        return "Book information with Book_ID " + bookId +  " deleted successfully";
    }

    // http://localhost:8080/Jersey-JSON-IO/rest/bookservice/getallbook
    @GET
    @Path("getallbook")
    @Consumes(MediaType.APPLICATION_FORM_URLENCODED)
    @Produces(MediaType.APPLICATION_JSON)
    public BookListType getAllBookInfo() {

        // create a object of type BookListType which takes book objects in its list
        BookListType bookListType = new BookListType();

        BookType bookOne = new BookType();
        bookOne.setBookId(10002);
        bookOne.setBookName("Cellular and Molecular Immunology");
        bookOne.setAuthor("Abul K. Abbas");
        bookOne.setCategory("Immunology");
        bookListType.getBookType().add(bookOne); // add to bookListType

        BookType bookTwo = new BookType();
        bookTwo.setBookId(10003);
        bookTwo.setBookName("Medical Physiology");
        bookTwo.setAuthor("Walter F. Boron");
        bookTwo.setCategory("Physiology");
        bookListType.getBookType().add(bookTwo); // add to bookListType

        return bookListType;
    }
}

Tomcat-8.0.12 Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Copy(ctrl+c) the war file from the target folder
Paste(ctrl+v) it into apache tomcat (webapps folder)
Start the tomcat server

Glassfish-4.1 Deployment

Run maven command to build the war: mvn clean install (use command prompt or integrated maven in eclipse IDE
Once you see “BUILD SUCCESS” after running maven command, keep the war file ready to be deployed
There are two ways to deploy war file into Glassfish-4.1
1. Online
2. Offline
Click here to understand above deployments process in detail

Test the service !!

Testing

There are many ways to do testing

Access html page from web browser
Copy the URL of GET service into web browser
Advanced REST client from Google Chrome
Rest client in Mozilla Firefox Add On
Write your own client for example, Java client using improved CloseableHttpClient from Apache
JDK’s in-built classes like HttpURLConnection
Using Client, WebTarget from core JAX-RS classes javax.ws.rs.client

1. Using RestClient from Mozilla Firefox Add-On

First service: @POST (createOrSaveBookInfo())
URL: http://localhost:8080/Jersey-JSON-IO/rest/bookservice/addbook
Request:

{
  "bookId": 10001,
  "bookName": "Molecular Biology of The Gene",
  "author": "James D Watson",
  "category": "Microbiology"
}

Content-Type: application/json
Accept: application/x-www-form-urlencoded
Response: New Book information saved successfully with Book_ID 10001

Second service: @GET (getBookInfo())
URL: http://localhost:8080/Jersey-JSON-IO/rest/bookservice/getbook/10001
Request: None
Content-Type: application/x-www-form-urlencoded
Accept: application/json
Response:

{
  "bookId": 10001,
  "bookName": "Molecular Biology of The Gene",
  "author": "James D Watson",
  "category": "Microbiology"
}

Third service: @PUT (updateBookInfo())
URL: http://localhost:8080/Jersey-JSON-IO/rest/bookservice/updatebook
Request:

{
  "bookId": 10001,
  "bookName": "Molecular Biology of The Gene",
  "author": "James D Watson",
  "category": "Microbiology"
}

Content-Type: application/json
Accept: application/x-www-form-urlencoded
Response: Book information updated successfully

Fourth service: @DELETE (deleteBookInfo())
URL: http://localhost:8080/Jersey-JSON-IO/rest/bookservice/deletebook/10002
Request: None
Content-Type: application/x-www-form-urlencoded
Accept: application/x-www-form-urlencoded
Response: Book information with Book_ID 10002 deleted successfully

Fifth service: @GET (getAllBookInfo())
URL: http://localhost:8080/Jersey-JSON-IO/rest/bookservice/getallbook
Request: None
Content-Type: application/x-www-form-urlencoded
Accept: application/json
Response:

{
  "BookType": [
    {
      "bookId": 10002,
      "bookName": "Cellular and Molecular Immunology",
      "author": "Abul K. Abbas",
      "category": "Immunology"
    },
    {
      "bookId": 10003,
      "bookName": "Medical Physiology",
      "author": "Walter F. Boron",
      "category": "Physiology"
    }
  ]
}

2. Java client

Uses Client, ClientBuilder, WebTarget and Response classes from core JAX-RS package javax.ws.rs.client for invoking Restful web service

Note: Commented lines will help out us to try (set) various http request header parameters

TestBookService.java

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

package test.jersey.series.json.service;

import javax.ws.rs.client.Client;
import javax.ws.rs.client.ClientBuilder;
import javax.ws.rs.client.Entity;
import javax.ws.rs.client.Invocation;
import javax.ws.rs.client.Invocation.Builder;
import javax.ws.rs.client.WebTarget;
import javax.ws.rs.core.MediaType;
import javax.ws.rs.core.Response;

import org.glassfish.jersey.client.ClientConfig;

public class TestBookService {

    public static void main(String[] args) {

        // setting & invoking first service getBook/10001
        System.out.println("Invoking and executing getBook service for book id 10001");
        String httpGetURL = "http://localhost:8080/Jersey-JSON-IO/rest/bookservice/getbook/10001";
        String responseStringGet = testBookServiceForGetRequest(httpGetURL);
        System.out.println("GET >> Response String : " + responseStringGet);

        // setting & invoking second service addBook with XML request
        System.out.println("\n\nInvoking and executing addBook service with request XML");
        String httpPostURL = "http://localhost:8080/Jersey-JSON-IO/rest/bookservice/addbook";
        String requestString = "{"
                +                   " \"bookId\": 10005, "
                +                   " \"bookName\": \"Food Microbiology\","
                +                   " \"author\": \"Martin Ray Adams\","
                +                   " \"category\": \"Microbiology\""
                +               "}";
        String responseStringPost = testBookServiceForPostRequest(httpPostURL, requestString);
        System.out.println("POST >> Response String : " + responseStringPost);
    }

    /**
     *
     * @param httpURL
     * @return
     */
    public static String testBookServiceForGetRequest(String httpURL){

        // local variables
        ClientConfig clientConfig = null;
        Client client = null;
        WebTarget webTarget = null;
        Invocation.Builder invocationBuilder = null;
        Response response = null;
        int responseCode;
        String responseMessageFromServer = null;
        String responseString = null;

        try{
            // invoke service after setting necessary parameters
            clientConfig = new ClientConfig();
            client =  ClientBuilder.newClient(clientConfig);
            //          client.property("Content-Type", MediaType.APPLICATION_FORM_URLENCODED);
            //          client.property("accept", MediaType.APPLICATION_JSON);
            webTarget = client.target(httpURL);

            // invoke service
            invocationBuilder = webTarget.request(MediaType.APPLICATION_FORM_URLENCODED).accept(MediaType.APPLICATION_JSON);
            //          invocationBuilder.header("some-header", "header-value");
            response = invocationBuilder.get();

            // get response code
            responseCode = response.getStatus();
            System.out.println("Response code: " + responseCode);

            if (response.getStatus() != 200) {
                throw new RuntimeException("Failed with HTTP error code : " + responseCode);
            }

            // get response message
            responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
            System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

            // get response string
            responseString = response.readEntity(String.class);
        }
        catch(Exception ex) {
            ex.printStackTrace();
        }
        finally{
            // release resources, if any
            response.close();
            client.close();
        }
        return responseString;
    }

    /**
     *
     * @param httpURL
     * @param requestString
     * @return
     */
    public static String testBookServiceForPostRequest(String httpURL, String requestString) {

        // local variables
        ClientConfig clientConfig = null;
        Client client = null;
        WebTarget webTarget = null;
        Builder builder = null;
        Response response = null;
        int responseCode;
        String responseMessageFromServer = null;
        String responseString = null;

        try{
            // invoke service after setting necessary parameters
            clientConfig = new ClientConfig();
            client =  ClientBuilder.newClient(clientConfig);
            //          client.property("Content-Type", MediaType.APPLICATION_FORM_URLENCODED);
            //          client.property("accept", MediaType.APPLICATION_JSON);
            webTarget = client.target(httpURL);

            // invoke service
            builder = webTarget.request(MediaType.APPLICATION_FORM_URLENCODED).accept(MediaType.APPLICATION_JSON);
            response = builder.post(Entity.entity(requestString, MediaType.APPLICATION_JSON));

            // get response code
            responseCode = response.getStatus();
            System.out.println("Response code: " + responseCode);

            if (response.getStatus() != 200) {
                throw new RuntimeException("Failed with HTTP error code : " + responseCode);
            }

            // get response message
            responseMessageFromServer = response.getStatusInfo().getReasonPhrase();
            System.out.println("ResponseMessageFromServer: " + responseMessageFromServer);

            // get response string
            responseString = response.readEntity(String.class);
        }
        catch(Exception ex) {
            ex.printStackTrace();
        }
        finally{
            // release resources, if any
            response.close();
            client.close();
        }
        return responseString;
    }
}

Output in console

Invoking and executing getBook service for book id 10001
Response code: 200
ResponseMessageFromServer: OK
GET >> Response String : {"bookId":10001,"bookName":"Molecular Biology of The Gene","author":"James D Watson","category":"Microbiology"}


Invoking and executing addBook service with request XML
Response code: 200
ResponseMessageFromServer: OK
POST >> Response String : New Book information saved successfully with Book_ID 10005

Conclusion: Thus, JSON format can be used to send/receive data where performance is a big consideration as it is light-weight. Especially, in mobile development client prefer to use JSON data for web service interaction

Download project

Jersey-2x-JSON-IO (12kB)

Happy Coding !!
Happy Learning !!

BenchResources.Net

Java tutorial for beginners

Jersey 2.x web service using JAXB + JSON example

Annotation Used

Technology Used

Mavenize or download required jars

JAXB – Generating java source files from XSD

Configure JAXB Maven plugin

Book.xsd

Run mvn generate-sources

BookType.java

BookListType.java

Directory Structure

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Web application

web.xml

Let’s see coding in action

URL Pattern

Book Service interface

IBookService.java

Book Service implementation

BookServiceImpl.java

Tomcat-8.0.12 Deployment

Glassfish-4.1 Deployment

Testing

1. Using RestClient from Mozilla Firefox Add-On

2. Java client

TestBookService.java

Output in console

Download project

Related

Annotation Used

Technology Used

Mavenize or download required jars

JAXB – Generating java source files from XSD

Configure JAXB Maven plugin

Book.xsd

Run mvn generate-sources

BookType.java

BookListType.java

Directory Structure

Project Structure (Package Explorer view in Eclipse)

Jars Libraries Used in the Project (Maven Dependencies)

Web application

web.xml

Let’s see coding in action

URL Pattern

Book Service interface

IBookService.java

Book Service implementation

BookServiceImpl.java

Tomcat-8.0.12 Deployment

Glassfish-4.1 Deployment

Testing

1. Using RestClient from Mozilla Firefox Add-On

2. Java client

TestBookService.java

Output in console

Download project

Related

Related posts:
